NEOLube/CaseLube Bullet Seating Neck Lube

Description

CaseLube™ is a precision-formulated liquid graphite case neck lubricant designed specifically for cartridge case neck preparation during ammunition reloading.

This 2 oz bottle provides extended volume for reloaders who prefer to use their own brush, media, or application system.

Why CaseLube™, case neck lubricant

• Promotes consistent neck tension

• Reduces friction during sizing and bullet seating

• Fast-drying graphite film

• Clean application with minimal residue

• Designed for precision reloaders

Application

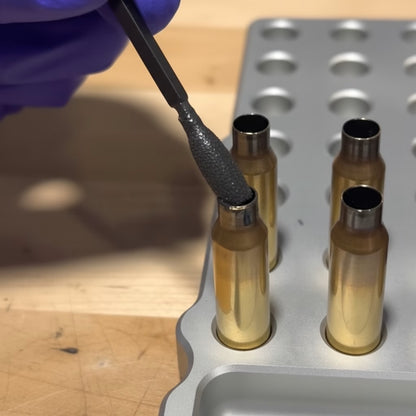

Apply a thin, even film to the interior of the case neck. Allow solvent to flash off before sizing or seating.

Composition

Processed micro graphite, thermoplastic resin, and isopropanol.

Properties

Non-corrosive, abrasion-resistant, high chemical purity, and conductive. Suitable for precision metal-to-metal applications where dry lubrication is required.

Physical Properties

• Physical State: Thixotropic gelColor: Black
• Temperature Range: -70°F to 400°F (-57°C to 204°C)
• Flash Point: 52°F (11.1°C), Pensky-Martens Closed Tester
• Density: 6.6 lb/gal (0.8 kg/l)
• VOC: 766 g/l (6.4 lb/gal)

Film Properties (As Cured)

• Color: Black
• Coefficient of Friction: 0.19 (Static)
• Service Temperature Continuous: 400°F (204°C)
• Intermittent Temperature: 850°F (454°C)
• Sheet Resistance: <2400 ohms/sq @ 25µm dry film thickness

Recommended Applications

• Cartridge case neck interior lubrication
• Projectile coating (light, uniform application)
• Die contact surfaces during sizing
• Reduction of static buildup in reloading environments

Application Instructions

Supplied ready for use. Mix thoroughly before application.

Apply a thin, even film using:

• Lint-free polyurethane foam applicator
• Non-abrasive foam swab
• Fine brush
• Dip method (light contact only)

Allow to air dry before sizing or seating.

Typical dry film thickness: 0.2 – 0.5 mil.

Surface Preparation

Ensure cases and projectiles are clean and dry before application. Remove oils and debris prior to coating.

⚠ Safety

DANGER: Extremely flammable liquid and vapor. Causes skin and eye irritation. May cause allergic skin reaction. May cause drowsiness or dizziness. Keep away from heat, sparks, and open flame.
